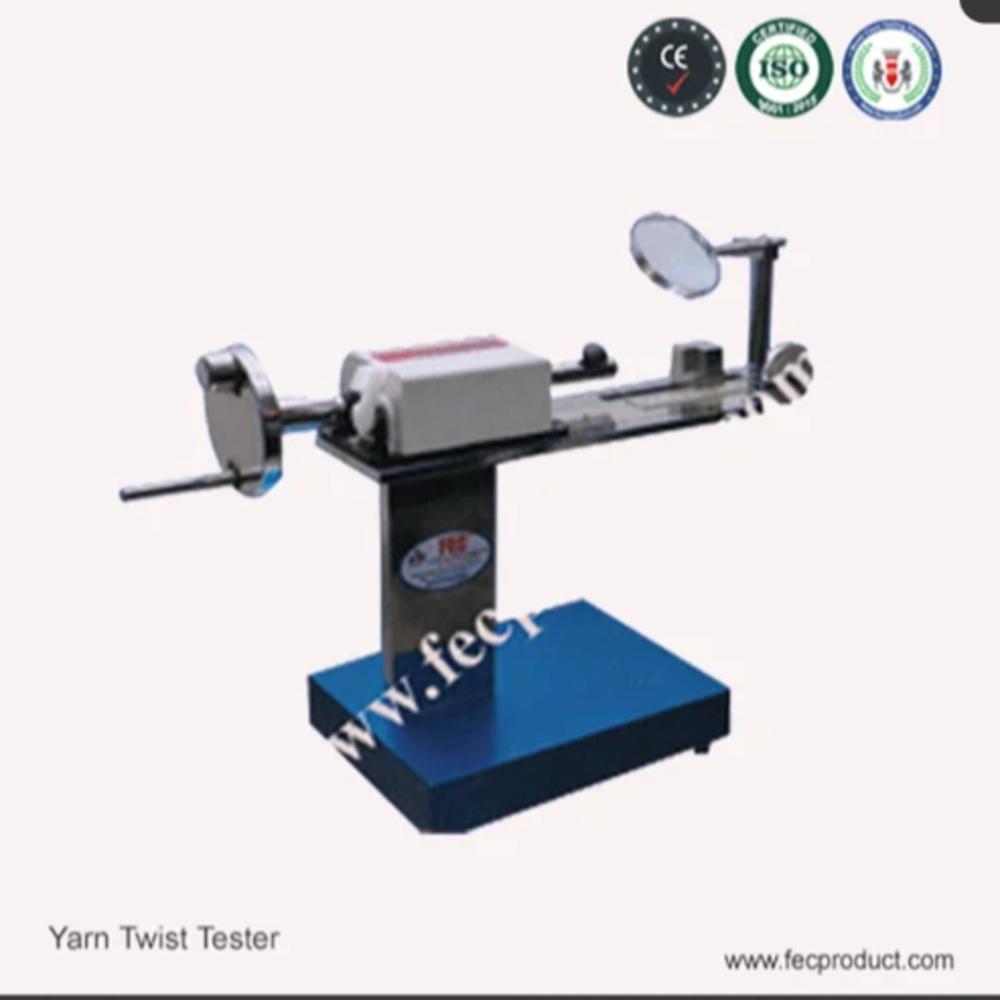

yarn-twist-tester (1000x1000)

Name: yarn-twist-tester (1000x1000)
Brand: FILTRATION ENGINEERING & CONSULTANTS
Price: 14000.0 INR
Availability: InStock

Price 14000.0 INR/ Ton

Get a Price/Quote

MOQ : 1 Ton

yarn-twist-tester (1000x1000) Specification

Specimen Size
Up to 500 mm

Automation Grade
Semi-automatic

Measuring Range
20-2000 TPI

Power Supply
220V AC, 50 Hz

Response Time
Immediate/manual read

Test Range
20 to 2000 TPI (Twist per inch)

Port Size
Standard bench-top

Mounting Type
Bench-top

Features
Smooth operation, adjustable specimen length, counter mechanism, robust build

Frequency
50 Hz

Humidity
Up to 85% RH

Equipment Type
Yarn Twist Tester

Accuracy
1 TPI or better

Max Height
Approx. 350 mm

Display Type
Analog dial/Counter

Operating Voltage
220V AC

Resolution
0.1 TPI

Number of Specimens
Single specimen per test

Application
Measuring yarn twist (S & Z twist)

Temperature
10C - 40C

Interface Type
Manual operation

Usage
Laboratory, textile QC

Capacity
Standard laboratory usage

Machine Weight
Approx. 15 kg

Test Speed
Adjustable, typically 30-120 rpm

Test Width
Up to 500 mm

Test Stroke
Standard up to 500 mm

Control Mode
Manual/Automatic

Twist Direction Capability
S & Z twist

Mirror Attachment
Provided for precise reading

Packaging
Foam-lined carton/wooden box

Calibration
Standard gauge supplied

Grip System
Clamping jaws for specimen holding

Material of Construction
Mild Steel/Aluminum with protective coating

Counter Type
Mechanical/optical

Exterior Finish
Powder coated

About yarn-twist-tester (1000x1000)

The strength of a yarn and other properties of fabrics depend to an extent on the amount of twist given to it. Thus accurate determination of this factor is of prime importance is assessing the quality of any yarn. The amount of twist given to a yarn is usually determined by untwisting a known length of yarn and finding the number of rotations of one of its ends relative to the other which remove the twist completely. The equipment used for determination of twists of a yarn is known as twist tester.

High Precision for Yarn Quality Control

With a measuring range of 20-2000 TPI and an accuracy of 1 TPI or better, this yarn twist tester offers meticulous twist measurement for quality assurance in textile laboratories. The robust grip system and adjustable stroke provide flexibility for a diverse range of yarn specimens, supporting precise analysis and consistent results.

Built to Last and Safe for Laboratory Use

Manufactured from durable mild steel or aluminum with a protective, powder-coated exterior, the instrument withstands frequent use in textile testing environments. Foam-lined packaging ensures safe transport, while the lightweight, bench-top design offers convenient handling and storage in laboratory setups.

User-Friendly Design and Versatile Application

Offering manual and semi-automatic control modes, as well as both mechanical and optical counters, the tester suits various user preferences. The mirror attachment ensures precise readings, while the adjustable test speed enhances operational versatility, making this device ideal for exporters, manufacturers, and quality control professionals in textiles.

FAQ's of yarn-twist-tester (1000x1000):

Q: How does the yarn twist tester measure S and Z twist directions?

A: The tester is designed with a grip system and adjustable mechanism that securely holds the yarn specimen and allows for twist measurements in both S (left-hand) and Z (right-hand) directions. Simply configure the specimen orientation and use the twist mechanism to determine the exact direction and count of twists.

Q: What is the process of operating the yarn twist tester?

A: Place the yarn specimen (up to 500 mm) between the clamping jaws. Set the desired speed (30 to 120 rpm) and control mode (manual or semi-automatic). Rotate the specimen until the yarn is untwisted, and use the analog dial, counter, or mirror attachment for accurate twist per inch (TPI) reading.

Q: When should I calibrate the yarn twist tester?

A: Calibration should be performed before initial use, after extended periods of inactivity, or if test results seem inconsistent. A standard gauge is supplied with the equipment for quick and reliable calibration to ensure measurement accuracy.

Q: Where can the yarn twist tester be installed?

A: Designed as a bench-top unit, the tester is best suited for laboratory environments, textile quality control departments, or manufacturer inspection areas. Its compact footprint and sturdy construction allow for convenient integration with existing laboratory setups.

Q: What are the benefits of using this yarn twist tester?

A: This tester delivers precise results due to its robust construction, adjustable specimen length, and sensitive reading mechanisms. Immediate response time and high resolution allow for reliable quality control, while powder-coated and protected components ensure extended durability. It is ideal for standard laboratory capacities.

Q: How many specimens can be tested at once and what sizes are supported?

A: The device is designed for single-specimen testing per operation, accommodating yarn specimens up to 500 mm in length. This setup optimizes grip and ensures accurate, repeatable measurements for each test.
