Dumbell Die & Press

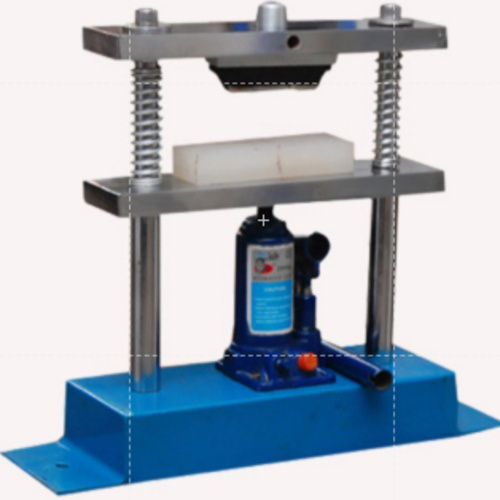

Name: Dumbell Die & Press
Brand: FILTRATION ENGINEERING & CONSULTANTS
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Dumbell Die & Press Specification

Hardness
Die steel, HRC 58-60

Power Supply
220V AC, 50 Hz

Display Type
Digital/Analog Options

Max Height
Approx. 450 mm

Response Time
<2 sec

Specimen Size
152 x 13 x 6 mm (standard dumbbell)

Gas Pressure
4-6 bar

Resolution
0.01 mm

Port Size
1/4 inch NPT

Application
Sample preparation for tensile and elongation testing

Mounting Type
Bench top

Equipment Type
Dumbell Die & Press

Operating Voltage
220V

Measuring Range
1 mm-150 mm

Automation Grade
Manual or Semi-Automatic

Test Range
1 kN to 10 kN

Features
Robust, easy to operate, interchangeable dies

Accuracy
0.5 mm

Frequency
50 Hz

Humidity
Up to 80% RH

Temperature
10C to 40C

Number of Specimens
Up to 5

Interface Type
Manual/Pneumatic push button

Usage
Rubber, Plastic, Cable, and Polymer specimen cutting

Capacity
10 kN max

Machine Weight
Approx. 60 kg

Test Speed
50 mm/min (adjustable)

Test Width
13 mm

Test Stroke
Up to 150 mm

Control Mode
Manual or Pneumatic

Safety Features
Protective shield, interlock switch

Color
Blue/Gray

Accessories Supplied
Standard dumbbell die set, operating handle, pressure tubes

Die Material
High-grade tool steel

Cutting Method
Shearing

Compliance
ASTM D412, ISO 37 standards

Plate Thickness Capacity
Up to 6 mm

Operating Environment
Laboratory, controlled temperature

Finish
Powder coated/Polished

About Dumbell Die & Press

Explore the flawless performance of our Dumbell Die & Press-crafted using gorgeous high-grade tool steel and finished with trending powder coating or polished options. Unveil the best in precision with access to adjustable test speeds (50 mm/min), robust safety features like a protective shield and interlock switch, and a specimen capacity up to 5 at a time. Designed for laboratories working with rubber, plastic, cable, and polymer, this bench-mounted equipment meets ASTM D412 and ISO 37 standards for specimen preparation-ensuring accuracy at every step. Find reliability and safety combined in one versatile solution.

Commercial Uses and Application Areas

The Dumbell Die & Press is a preferred choice among research laboratories, quality control departments, and commercial manufacturers. It's widely used in industries focusing on rubber, plastics, cables, and polymer products for specimen preparation before tensile and elongation testing. Its application areas include controlled laboratory environments, material testing labs, and product development centers, where flawless preparation and reproducibility are essential for producing top-notch products and accurate data.

Sample Policy and Shipping Information

Sample pieces for the Dumbell Die & Press can be provided upon request under a flexible sample policy. Each unit is carefully packed and dispatched through reliable methods, ensuring protection during transit. We offer FOB (Free On Board) at the specified port, and drop-off and shipping arrangements are streamlined for your convenience. The packing and dispatch team ensures all items are securely prepared for shipment to avoid any damage during delivery and to meet commercial quality standards.

FAQ's of Dumbell Die & Press:

Q: How does the Dumbell Die & Press enhance laboratory sample preparation?

A: The Dumbell Die & Press streamlines specimen cutting with hardened dies, adjustable test speeds, and precision controls, allowing labs to prepare up to 5 flawless specimens simultaneously, adhering to ASTM and ISO standards.

Q: What materials can be processed using this equipment?

A: This press is designed for cutting specimens from rubber, plastic, cable, and polymer materials, making it versatile for a wide range of laboratory testing applications.

Q: Where can the Dumbell Die & Press be installed and operated?

A: It is best suited for laboratory environments with controlled temperature and humidity, and can be conveniently placed on a benchtop for ease of operation.

Q: What safety features does the Dumbell Die & Press offer?

A: Safety is prioritized through a robust protective shield and an interlock switch, ensuring secure specimen cutting and reducing operator risk during operation.

Q: How do interchangeable dies benefit commercial users?

A: Interchangeable dies allow users to adapt the press for different specimen sizes and testing standards, supporting diverse testing needs and enhancing equipment versatility.

Q: What is the process for obtaining and dispatching a sample?

A: Interested buyers can request a sample under the specified policy; the units are professionally packed and dispatched from the FOB port, ensuring timely and secure drop-off at the destination.
